Pipe

We Offer Wide Range Of Sheets & Plates
We offer Sheets and Plates of various grades, diameters, and lengths. These Steel Sheets and Plates are available as hot rolled, forged, cold drawn, rough turned, turned and polished, quenched and tempered, thermally treated, or annealed. The materials are provided with a Material Test Certificate. The material's chemical composition and mechanical properties are tested before dispatch and hence only quality materials get delivered to our customer

Stainless & Duplex Steel

Category Details
Range 0.1 mm to 100 mm thick, up to 2500 mm width & up to 8000 mm length, available with NACE MR 01-75
Stainless Steel Grades ASTM / ASME SA 240: 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 316L, 316TI, 317, 317L, 321, 321H, 347, 347H, 409, 410, 410S, 430
Duplex Steel Grades ASTM / ASME SA 240 UNS: S31803, S32205, S32550, S32750, S32760

Carbon & Alloy Steel

Category Details
Range 3 mm to 100 mm thick, up to 2500 mm width, up to 12500 mm length, available with NACE MR 01-75
Carbon Steel Grades ASTM / ASME A516 / A517 GR. 60 / 70, IS 2062, IS 2002
Alloy Steel Grades ASTM / ASME A387 GR. F5, F9, F11, F12, F22, F91

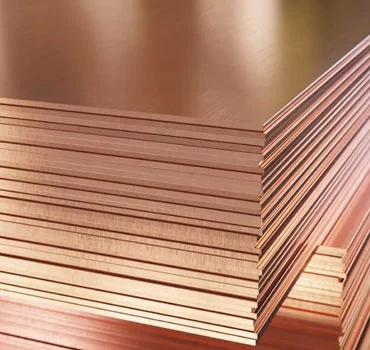

Nickel & Copper Alloy

Category Details
Range 5 mm to 100 mm thick, up to 2500 mm width & up to 6000 mm length, available with NACE MR 01-75
Nickel Alloy Grades Nickel: ASTM / ASME SB 162 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201) Monel: ASTM / ASME SB 127 UNS 4400 (Monel 400) Inconel: ASTM / ASME SB 424 UNS 8825 (Inconel 825), ASTM / ASME SB 168 UNS 6600 (Inconel 600), UNS 6601 (Inconel 601) Inconel: ASTM / ASME SB 443 UNS 6625 (Inconel 625) Hastelloy: ASTM / ASME SB 574 UNS 10276 (Hastelloy C276) Alloy 20: ASTM / ASME SB 462 UNS 8020 (Alloy 20 / 20 CB 3)

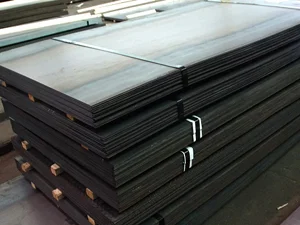

Hastelloy

Category Details
Grades Hastelloy C-22 Hastelloy C-276 Hastelloy C-2000
Available Forms Hastelloy Sheet Hastelloy Coil Hastelloy Strips Hastelloy Plates Hastelloy Circle Hastelloy Ring

Inconel

Category Details
Grades Inconel 600 Inconel 601 Inconel 625 Inconel 625LCF Inconel 686 Inconel 718 Inconel 800 Inconel 825 Inconel X-750
Standard ASTM / ASME SB 168 ASTM / ASME SB 424 ASTM / ASME SB 443

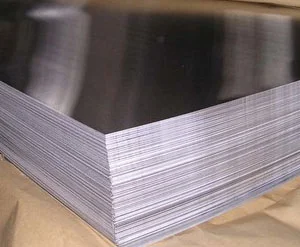

Monel

Category Details
Grades Monel 400, Monel K500
Type Seamless / ERW / Welded / Fabricated
Form Round, Square, Rectangular, Hydraulic, etc.
Length Single Random, Double Random & Cut Length
End Plain End, Beveled End, Threaded
Salient Features Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Draw & Expansion

Titanium

Category Details
Material Titanium and Titanium Alloys
Grade Pure Titanium: GR1, GR2, GR3, GR4 Titanium Alloy: GR5 (6% Al, 4% V), GR6 (5% Al, 2.5% Sn), GR7 (Titanium + Pd), GR9 (3% Al, 2.5% V), GR10 (11.5% Mo, 6% Zr, 4.5% Sn), GR11 (Titanium + Pd), GR12 (0.3% Mo, 0.8% Ni)
Standards 0.3mm - 60mm
Application Bicycles, Motors, Chemicals
Strength Superior Quality, Fast Delivery, Competitive Price, Humanized After-Sales Service
Features Low Density Rustless Good Antiwear Property High Strength
Size Set the size according to the customers' requirements

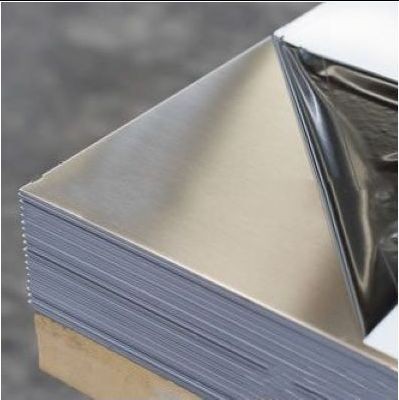

Stainless Steel Sheet

Standard Product Form
ASTM B265 (Gr2) Sheet, Strip, and Plate
ASTM B338 Tube, Seamless and Welded
ASTM B348 (Gr2) Bars and Billets
ASTM B861 Seamless Pipe
ASTM B863 Wire
ASTM F67 (Gr2) Unalloyed Titanium for Surgical Implants

Stainless Steel Sheet Specification

Grades Available 304, 304L, 316, 316L, 321, 310, 310S, 904L, 17-4PH, and more as per customer requirements
Thickness Range From 0.3 mm to 100 mm (custom thicknesses available)
Width Up to 2500 mm
Length Up to 6000 mm, or custom-cut based on requirements
Finish Options
  1. 2B: Matte finish (industrial)
  2. BA: Bright Annealed (shiny, reflective)
  3. Hot-rolled finish (industrial use)
  4. Brushed finish (architectural)
  5. Mirror Finish: High-gloss finish (decorative)
Mechanical Properties
  1. Tensile Strength: 505–720 MPa (varies with grade)
  2. Yield Strength: 210–500 MPa (varies with alloy content)
  3. Hardness: 80–90 HRB (varies with grade)
Corrosion Resistance Excellent resistance to rust, stains, and corrosion, ideal for harsh environments
Standards & Certifications
  1. ASTM A240, A480, A666, DIN, JIS, EN, and others
  2. Mill Test Certificates (MTC) provided upon request
  3. NACE MR0175 compliance for sour gas environments
Applications
  1. Construction & Architecture: Panels, facades, roofing
  2. Construction & Architecture: Panels, facades, roofing
  3. Food Processing: Equipment requiring hygiene
  4. Chemical & Pharmaceutical: Corrosion-resistant equipment
  5. Automotive & Aerospace: High-strength, corrosion-resistant components
